H Plank Ceiling

The Linear Metal Ceiling C Series by XINENZE offers a versatile and aesthetic solution for modern interior design.

Available in various sizes and materials, including GI (Galvanized Iron) and Aluminum, with options for plain, perforated , solid colors, and wooden shades, this ceiling system combines functionality with design flexibility.

Get a Quota Download

product details

product description

description1

description2

Key Features & Performance

● Acoustical options with microperforated panels

● Custom finishes available

● Fast and easy installation

● Durable – Washable, Scrubbable, Impact-resistant, Soil-resistant

Product Applications

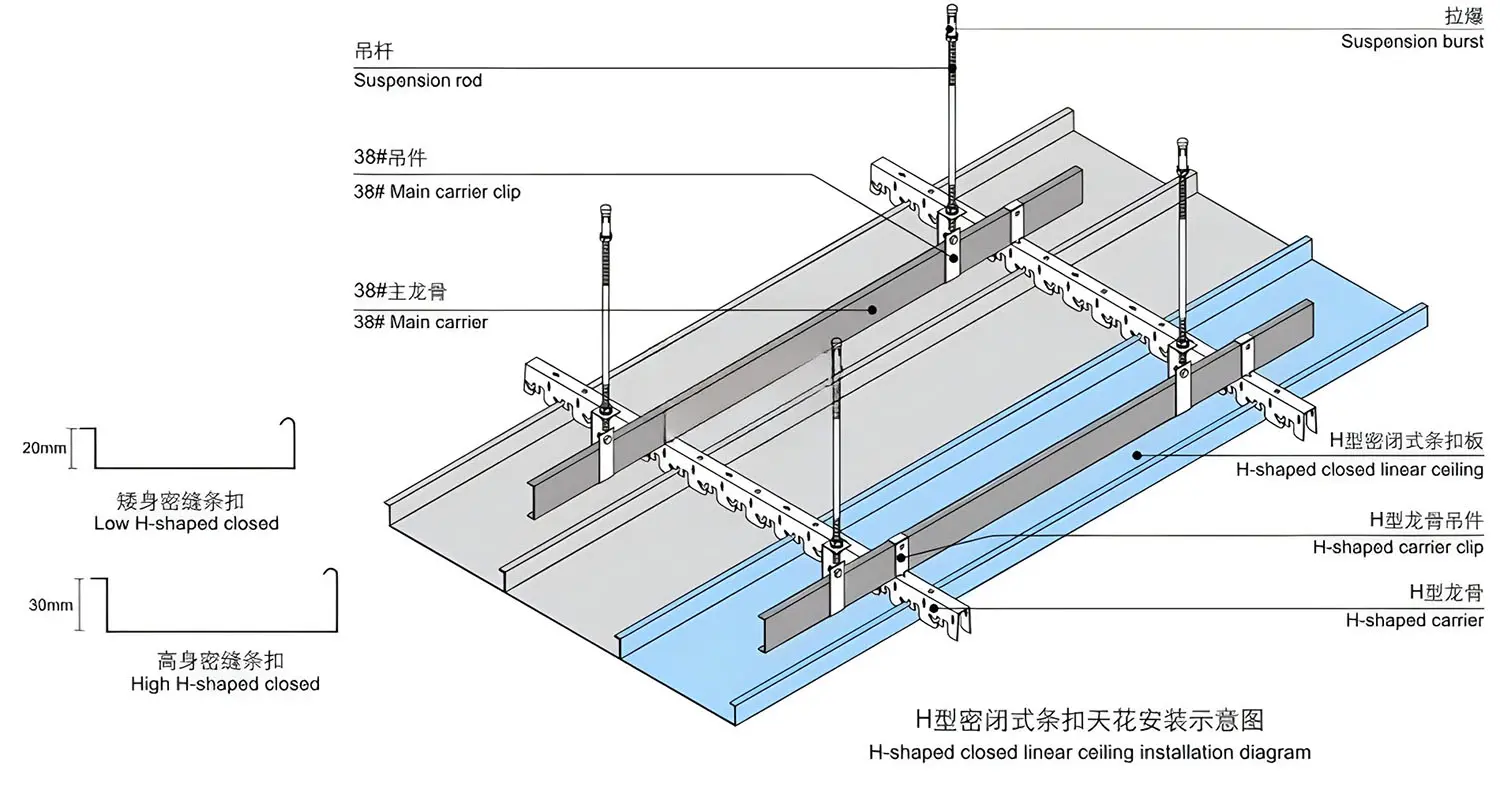

XINENZE Metalworks S-Plank and H-Plank provide a monolithic linear visual that works well in large open spaces or corridors. Installed with an extended metal concealed suspension grid, these metal ceiling panels result in a closed, smooth surface. Available in different profile widths, the microperforated panel option also provides a fast and easy ceiling solution for good acoustical performance. Hence, Metalworks S-planks and H-planks are ideal for use in busy transportation hubs, atriums, reception areas, or other retail spaces.

010203

H-Plank Ceiling Panel Dimensions

Material	AA grade aluminum alloy
Surface Finish	Powder coating/PVDF/ Painted/ Pre-painted and etc.
Height	30 mm
Thickness	0.55-0.8 mm
Lenght	100-6000 mm
Standard width	150/200/300 mm
Custom width	150-600 mm
Product Advantages	- Easy installation; - Rich in style and color, customizable; - The ceiling system is rugged and long-lasting; - Adapt to various environments, moisture. corrosion, etc.

Customizable Finishes

XINENZE offers a wide choice of colours and finishes. Some colours and finishes carry a premium price over manufacturer's standard colours. Custom colour matching is a vailable upon request. Please consult XINENZE for minimum quantities and lead times on specific orders.
