Aluminium Strip B-Shaped Ceiling

Aluminium Strip B-Shaped Ceiling

XINENZE Linear B-Shaped Aluminum Ceiling System is a suspended ceiling system with a large opening, with various widths and heights, can be clipped onto the B-Shaped carrier system, the surface is finish by PE paint with many colors, lengths of panel are produced on request. Have open gap between two panel and widths according to the design of the project, the product has high aesthetics. The product is easy to construct and install, does not require complicated tools and machinery. Compatible with industry standard lighting, audio speakers, fire safety, cameras, and security services etc. The product has high stability and is completely fireproof. and water resistant, not oxidized, completely eliminating the aggressive factor of the environment. XINENZE Group has always researched and developed to create products that are environmentally friendly, energy-conserving, efficient and sustainable. All XINENZE Group products are 100% recyclable.

Get a Quota Download

product details

product description

description1

description2

Key Features & Performance

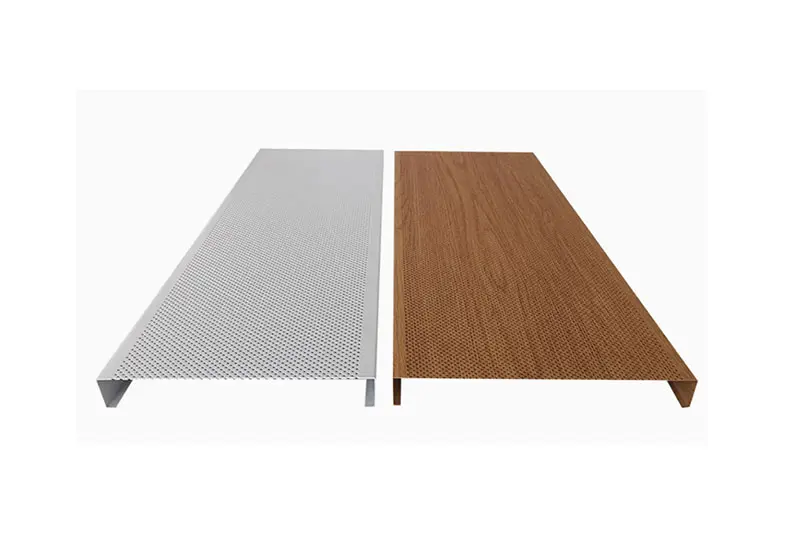

● Acoustical options with microperforated panels

● Custom finishes available

● Fast and easy installation

● Durable – Washable, Scrubbable, Impact-resistant, Soil-resistant

Product Applications

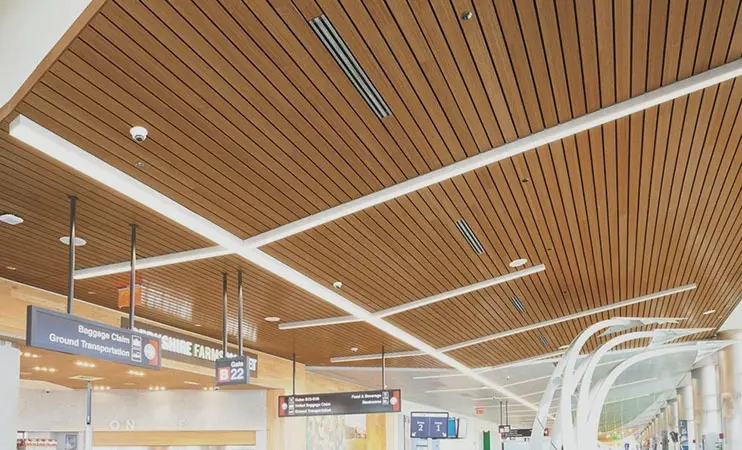

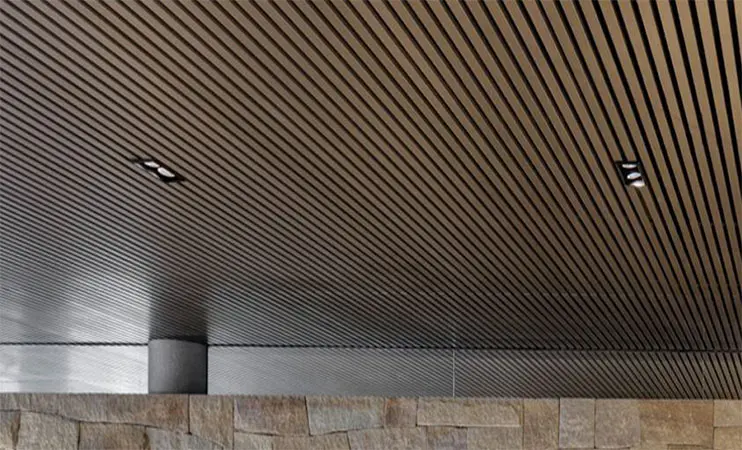

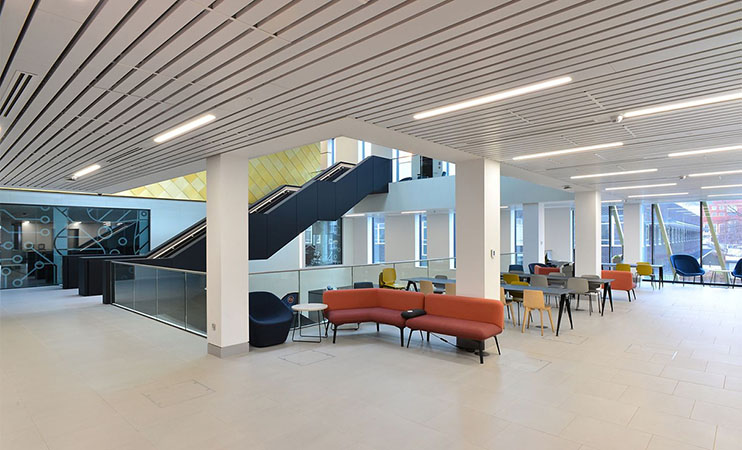

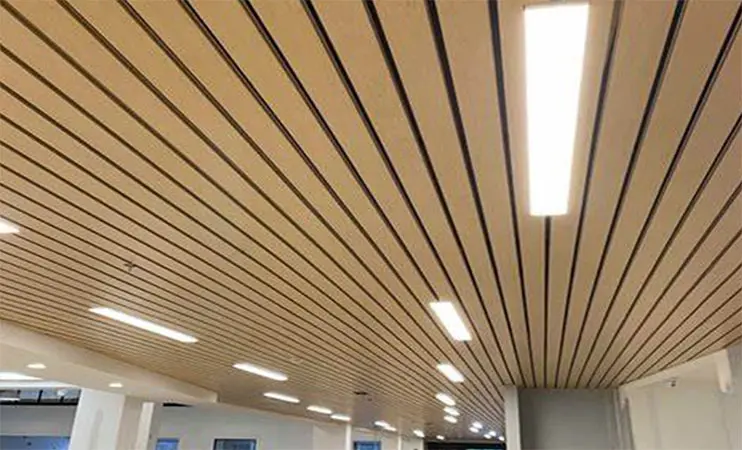

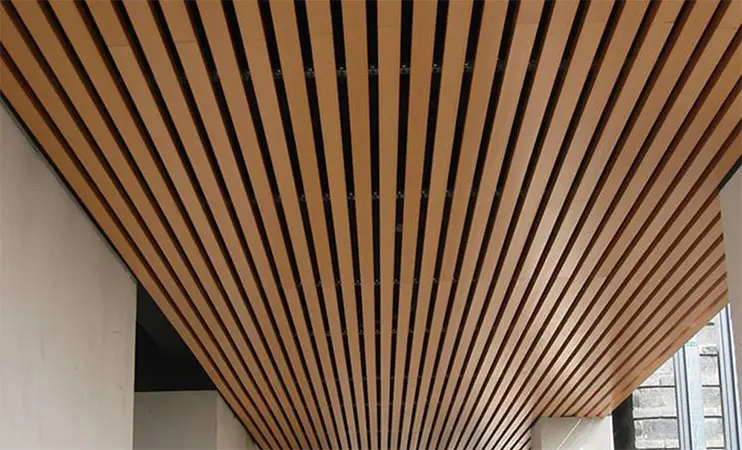

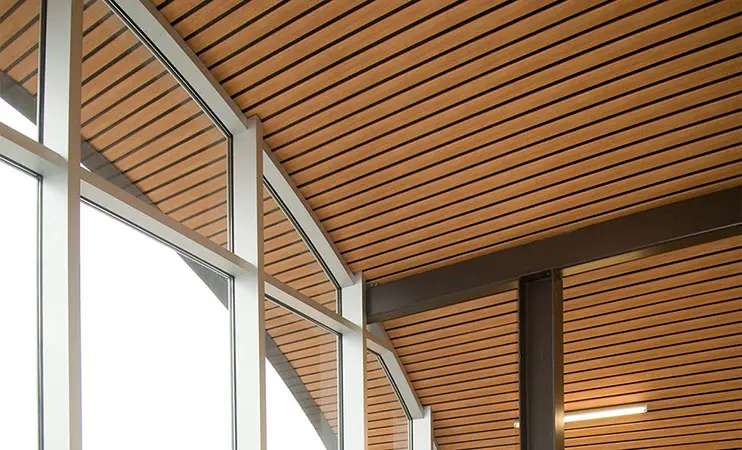

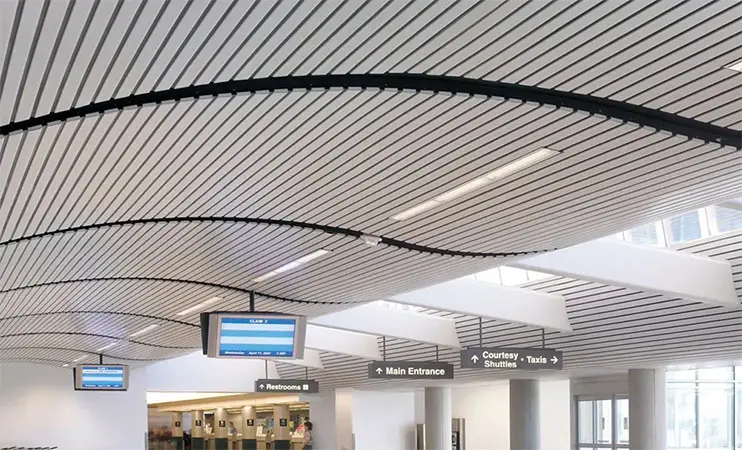

Our metal ceiling planks and panels feature a wide range of sizes, profiles, finishes, perforations and patterned designs that easily transform the look of any space. From modern to historic, installations are simple with our grid-based suspension solutions.Airports, Bus Stations, Railway Stations, Corridors, Department Stores, Reception Areas, Lobbies, Banquette Halls &Showrooms.

01020304050607

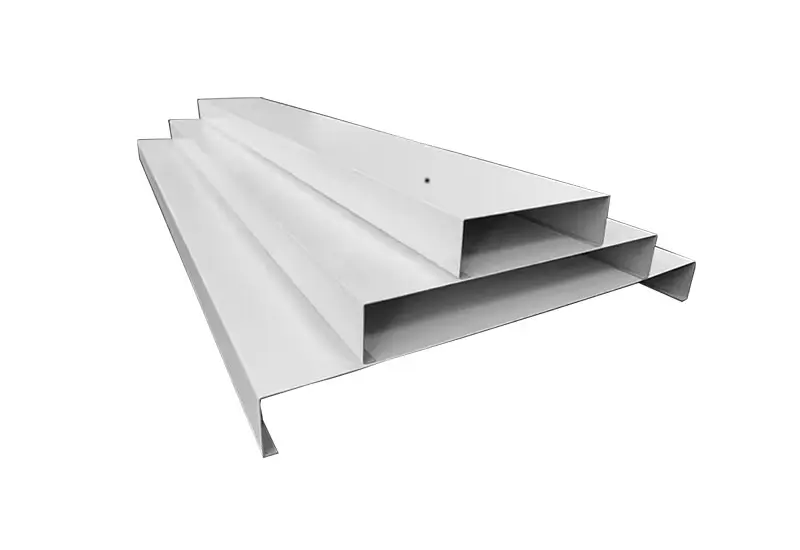

Panel Dimensions

Material	AA grade aluminum alloy
Surface Finish	Powder coating/PVDF/ Painted/ Pre-painted and etc.
Height	20-50 mm
Thickness	0.7-1.0 mm
Lenght	100-6000 mm
Standard width	50/100/150/200/300 mm
Custom width	100-300 mm

Customizable Finishes

● Powder Coating Surface Finish

5-003

5018

EZ2-002

EZ3-001

● Pre-Coating Surface Finish

2560A-8

QS7103-45

QS7109-18

QS7127-5

● PVDF Surface Finish

QS7103-45

QS7130-11

QS7160-2

QS7179-3

● Wood-Grain Surface Finish

QS7127-5

QS7130-11

QS7157

QS7173-1

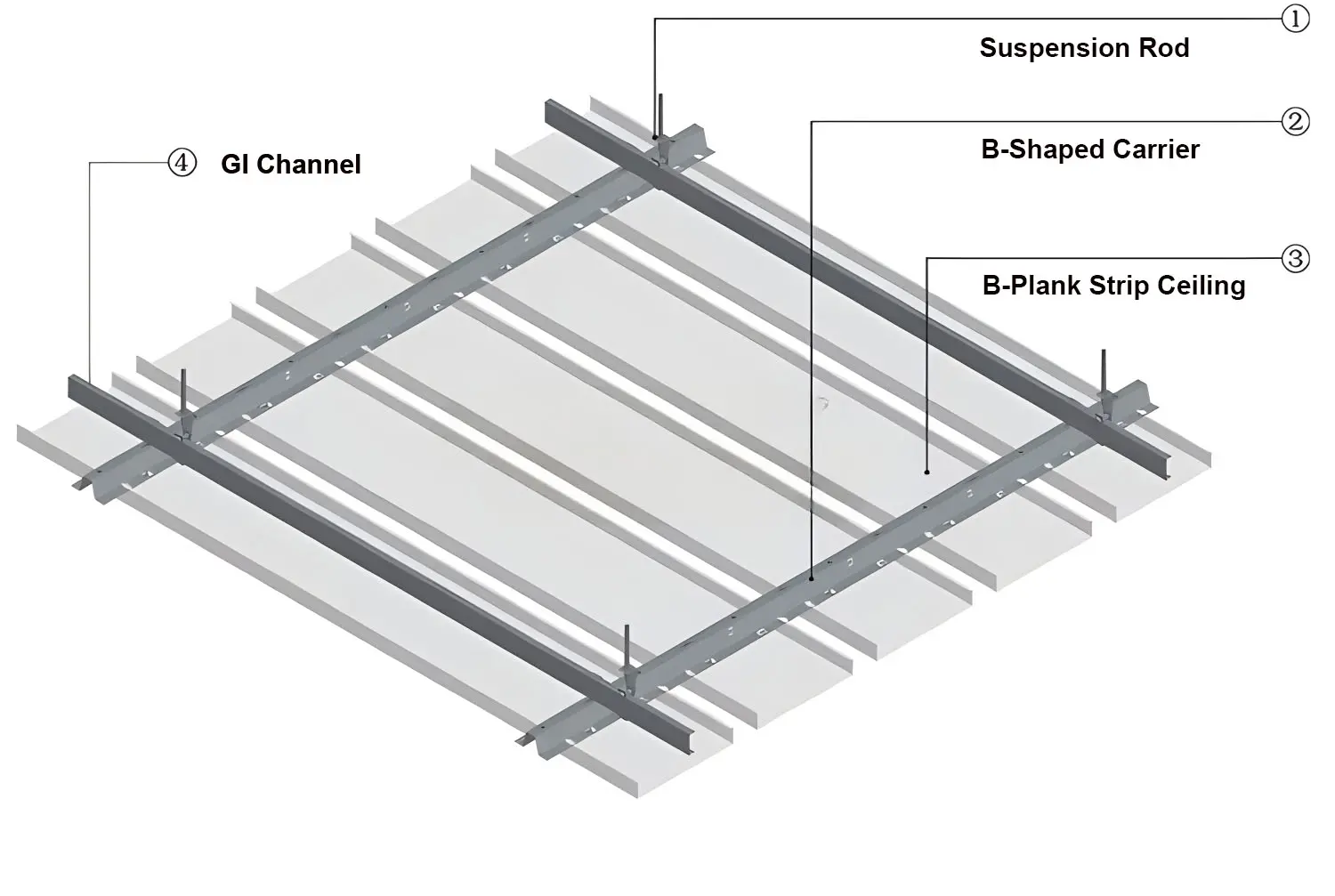

Installation Description

QUESTIONS & ANSWERS

Q1: What are the standard and customizable sizes available for the B-Plank Ceiling?

A: The B-Plank Ceiling is available in standard widths of 50, 100, 150, 200, and 300 mm, and custom widths up to 500 mm. Lengths can extend up to 6000 mm, accommodating large areas without joints.
Q2: Which types of projects are most suitable for the B-Plank Ceiling system?

A: Ideal Ceiling Solutions for Large Open Spaces or Corridors such as airports, train stations, shopping malls, and exhibition centers, Metalworks B-planks and S-planks are ideal for use in busy transportation hubs, atriums, reception areas, or other retail spaces
