Main Channel

In the construction industry, a Galvanized Iron (GI) main channel is a building material that is frequently utilized in suspended ceiling systems.

Material: Galvanized iron, or steel or iron coated in a layer of zinc to prevent corrosion, is usually used to make the main channel. Rust resistance and durability are provided through the galvanization process.

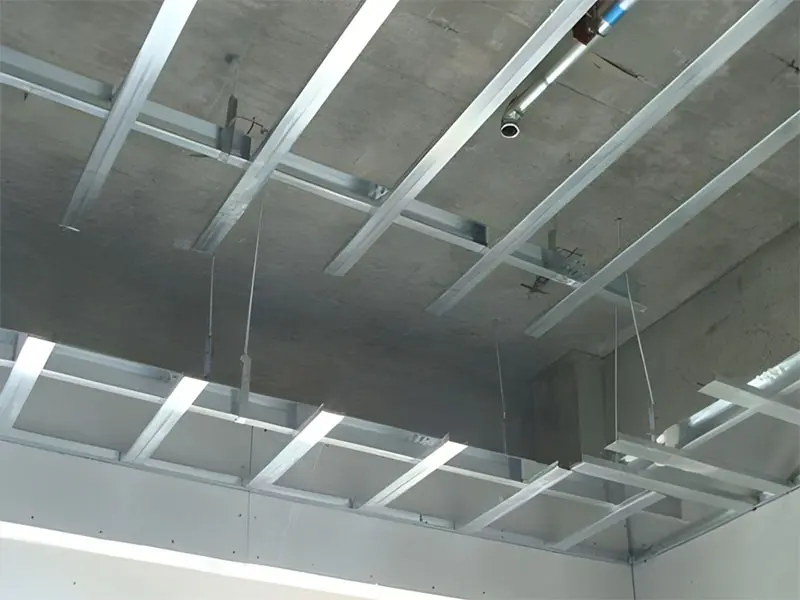

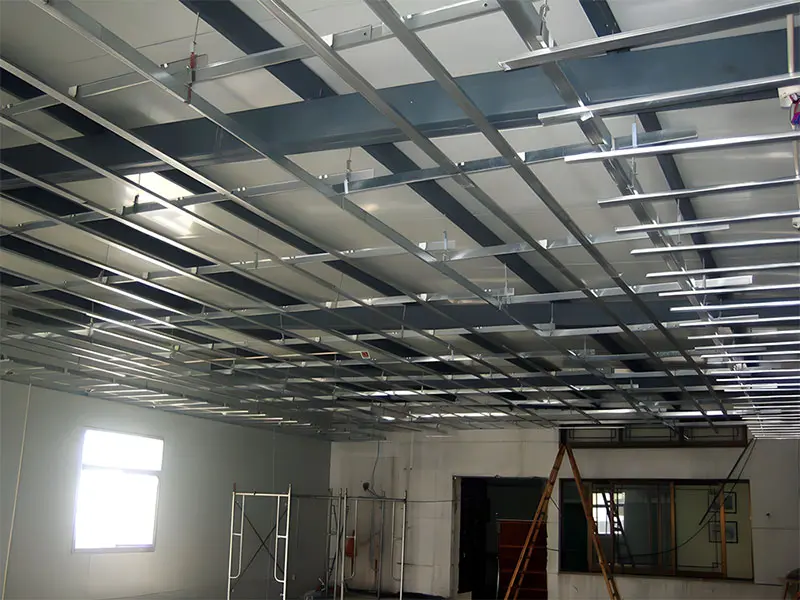

Ceiling Grid System: In a suspended ceiling system, hangers are used to connect the main horizontally installed channels to the building's framework. The ceiling tiles and other elements of the ceiling system are supported by the framework that these channels create.

GI is the standard size. Main Channels are available in standard sizes, though their exact measurements may change according to the manufacturer's specifications and the particular demands of the ceiling design.

Galvanized Coating: The main channel's galvanized coating keeps it from corroding and makes it appropriate for settings where exposure to moisture is a risk. This is particularly crucial in places like restrooms and kitchens.

Get a Quota

product details

product description

description1

description2

Key Features & Performance

● They do not require pest control, since they are termite resistant.

● They are long-lasting and handle torque and twisting from.

● Earthquakes and other natural disasters better than wood.

● They are recyclable and lack VOCs, making them environmentally friendly.

Product Applications

GI Main Channels are essential parts of suspended ceiling construction. They support the entire ceiling grid system by acting as the main structural components that cross the ceiling horizontally.

010203

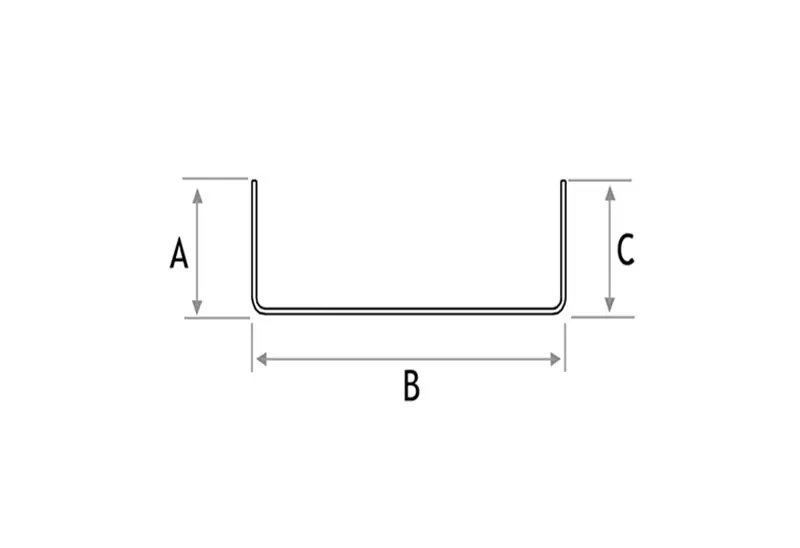

Main channel Dimensions

Reference	Dimension (A-B-C) (mm)	Thickenss (mm)	Length (mm)	Material
XEZMC3812	12 - 38 - 12	0.45-1.5	3000	Galvanized Iron (GI)
XEZMC3810	10 - 38 - 10	0.45-1.5	3000	Galvanized Iron (GI)
XEZMC4515	15 - 45 - 15	0.45-1.5	3000	Galvanized Iron (GI)
XEZMC5015	15-50-15	0.45-1.5	3000	Galvanized Iron (GI)

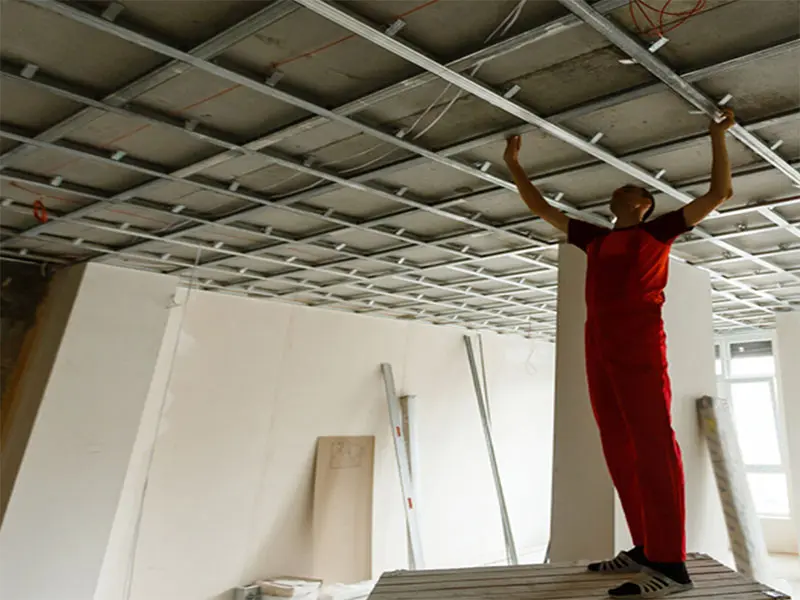

Installation

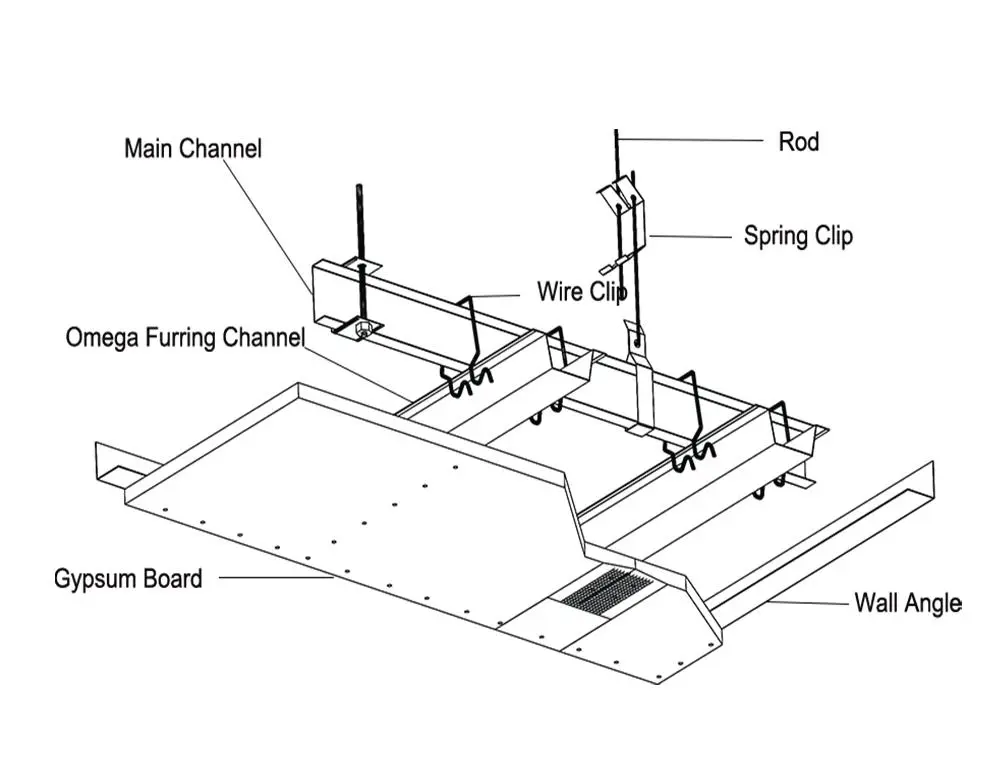

To install a GI Main Channel, hangers are used to fasten it to the ceiling structure. After that, cross tees are hung from the main channel to create a grid pattern. A finished ceiling is produced by arranging ceiling tiles inside the grid.
